These coils are designed for high power and high performance vehicles running on an aftermarket ECU (Such as a LINK). There is the potential to make them operate on a standard ECU - Vehicle and ECU dependent.

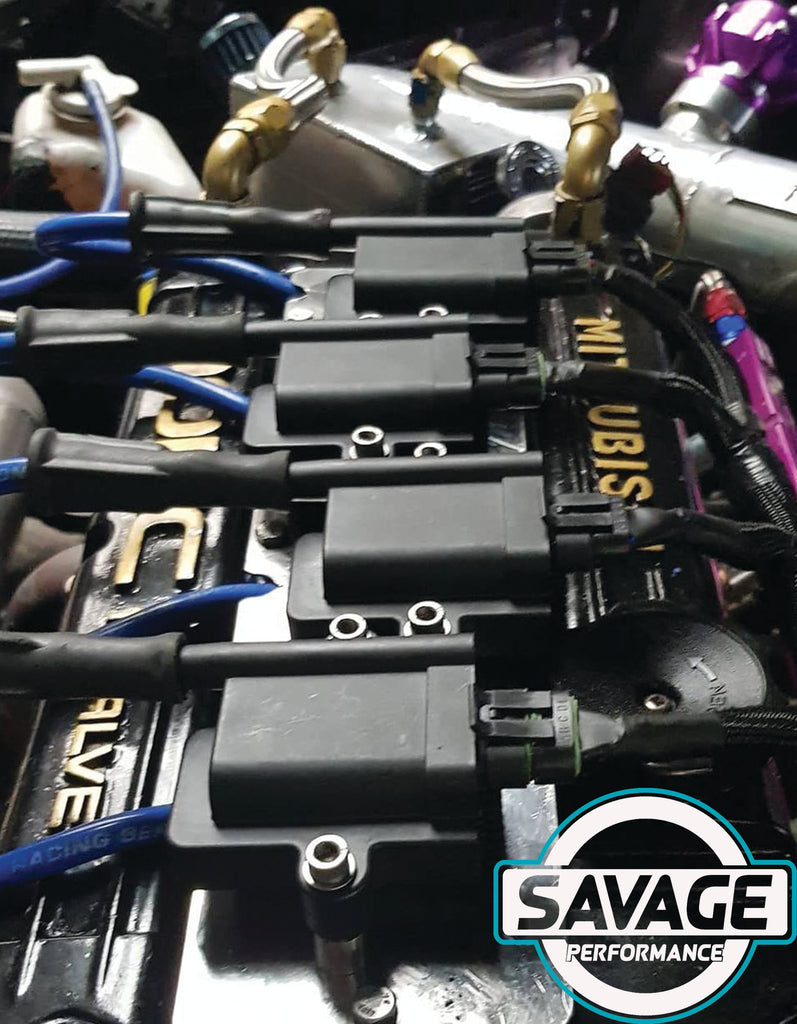

Not recommended for use in distributor type set-ups - but perfectly suited for coil on plug type applications!
Each coil has a built-in igniter with an external heat sink. This means the ECU can trigger each coil separately, as required, without the need for a separate igniter - this makes the system far simpler, cheaper and more reliable.
These coils use a HEI post-style output for higher resistance against misfire and are compatible with most brands of HT leads.

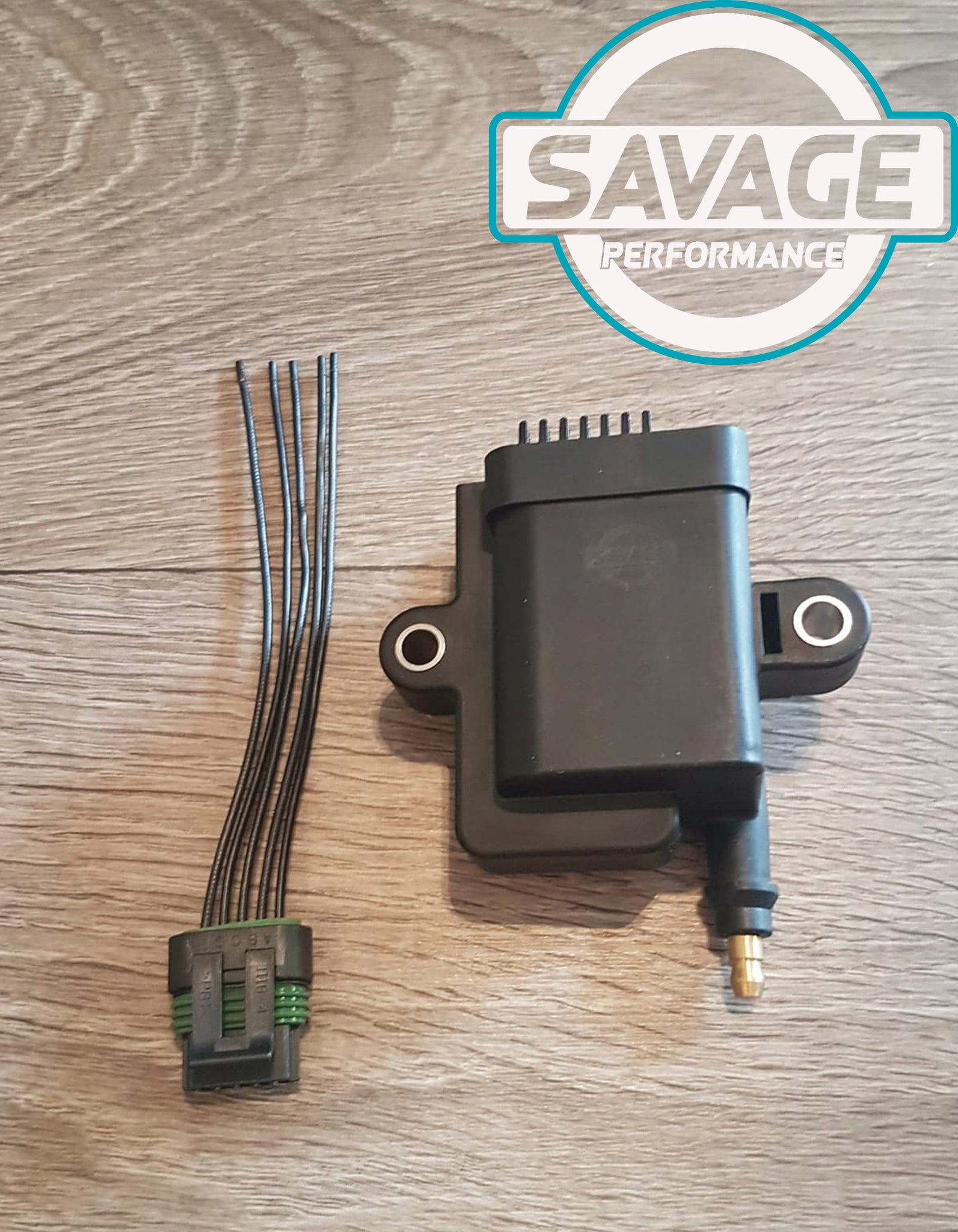

1x Coil pack 1x Sealed plug with pigs-tail
Can be used on virtually any engine (with a bit of customisation!), for example: 2JZ, RB20, RB25, SR20, 13B, RB30, B6/BP, 4AGE, K20A, CA18, FJ20, B16A, B18C, H22A, F20C

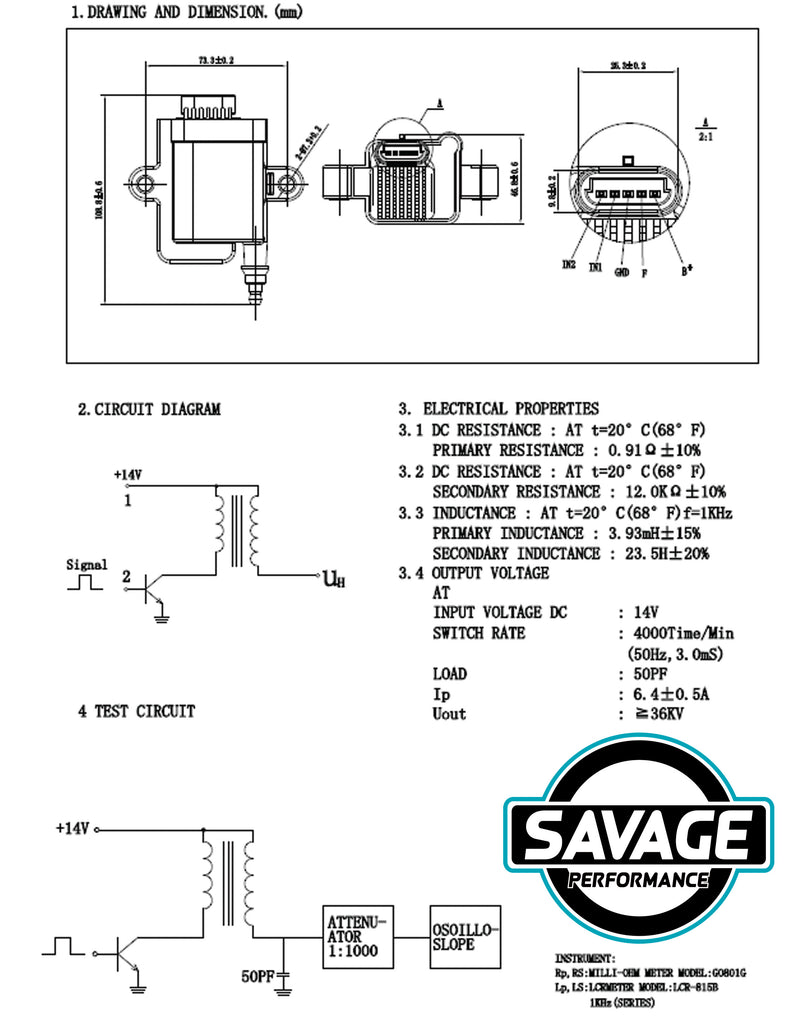

Wiring as follows:
A - ECU/Coil Trigger B - Ground to ECU Sensor C - Ground to Head (Secondary winding ground) D - Ground to Battery (HIGH CURRENT) E - Main Power Supply
We also have a range of vehicle-specific Coilpacks available, including RB Series 1 (S1), RB Series 2 (S2), RB NEO (S3), S13, S14, S15 SR20DET, EVO 4-9 (4G63), 2JZ VVTI, 2JZGTE, and 2JZ NON-VVTI!
